Gator Pivot instrument
Gator Pivot instrument

Gator Pivot

High-Resolution BLI System

Key Specifications
  • 16High frequency parallel binding reactions
  • 816Samples quantitated per run
  • 15°C to 40°CSample temperature control
Download brochure

One system. Numerous discoveries.

Gator® Pivot enables rapid, in-depth drug candidate characterization across diverse conditions. Leverage versatile assay setups, simplified workflows, and assured high-quality data.


Gator Pivot instrument

2×384-Well Plate Throughput

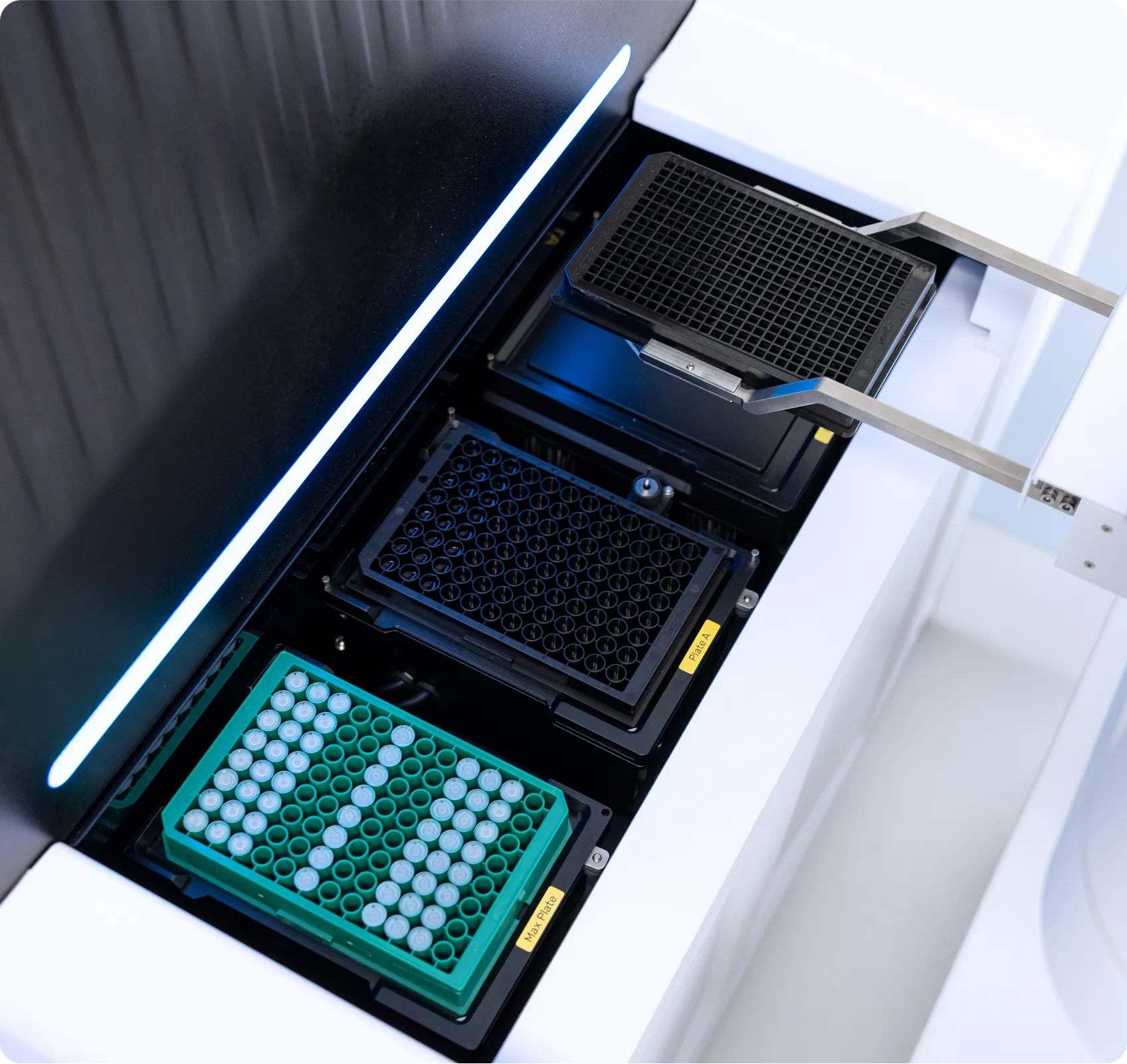

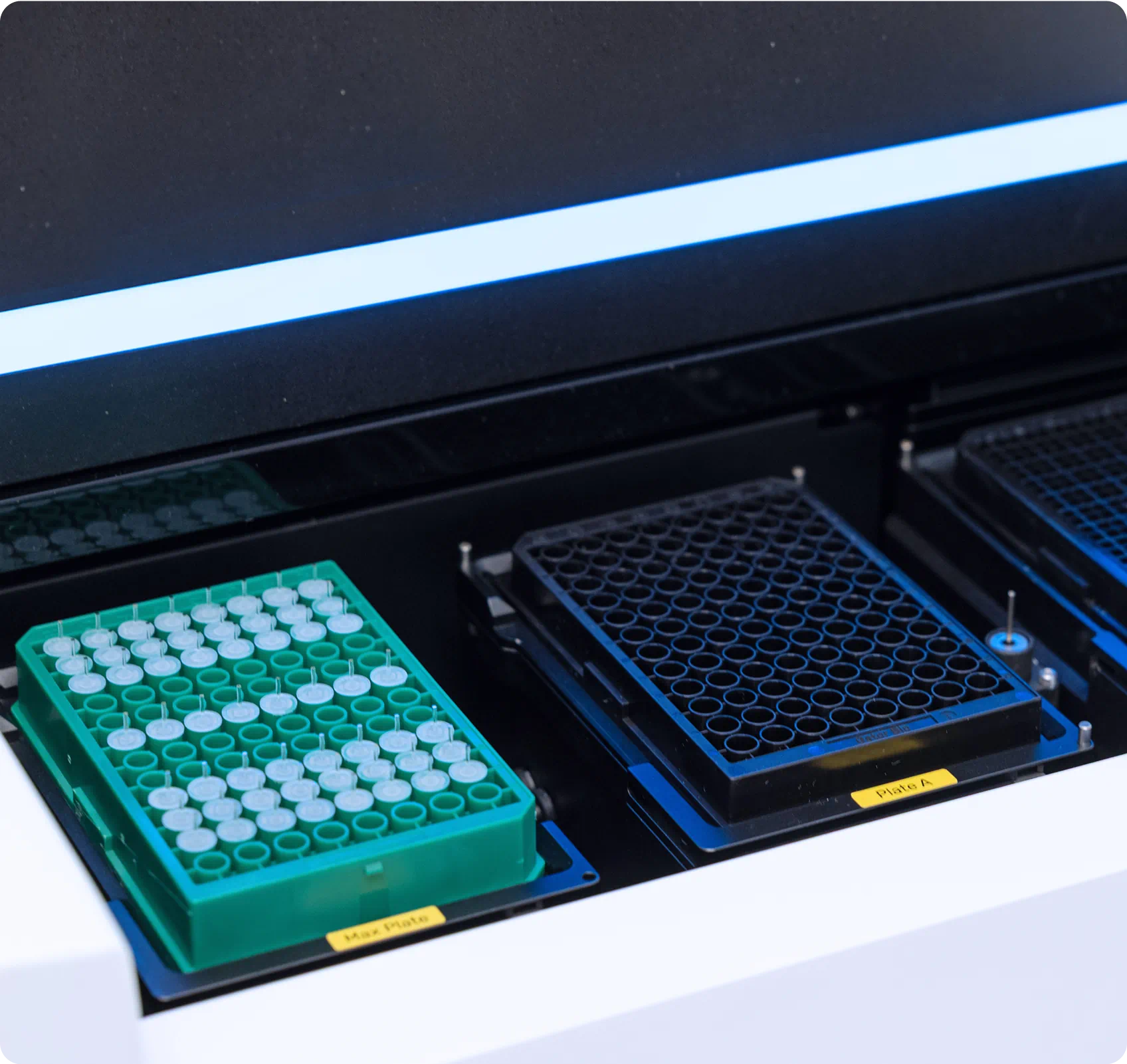

Hold up to 2×384-well sample plates in a single run, making the Gator Pivot ideal for mid-throughput applications such as candidate screening and kinetic analysis without sacrificing speed or data quality.

View applications

Wide Analysis Temperature (15°C – 40°C

Perform assays under optimal thermal conditions with a programmable temperature range of 15°C – 40°C, supporting consistent and reliable binding measurements.

View applications

Gator Pivot instrument

Gator Pivot Features

Click on any information icon to view more

Gator Pivot instrument

High-resolution Data

Dedicated spectrometer per channel, no data splitting across all reading modes

Reliable Kinetic Outcomes

Ultra-stable baseline, driven by robust thermal control

High-throughput Performance

16 pickers deliver
16 parallel readings

Automated Picker Maintenance

Built-in self-cleaning system

Seamless Automation Integration

Automated door and API facilitate easy integration

Real-time System Status

Clear LED indicators display running status

Enchanced User Safety

Secondary power button enables secure operation

Flexible Assay Configuration

Supporting 1 biosensor and 2 sample plates (96- or 384-well plates)

Extended Application

Shaker temperature ranging from 15-40 C

Download Spec Sheet
Gator Pivot instrument

High-resolution Data

Dedicated spectrometer per channel, no data splitting across all reading modes

Gator Pivot instrument

Reliable Kinetic Outcomes

Ultra-stable baseline, driven by robust thermal control

Gator Pivot instrument

High-throughput Performance

16 pickers deliver
16 parallel readings

Gator Pivot instrument

Automated Picker Maintenance

Built-in self-cleaning system

Gator Pivot instrument

Seamless Automation Integration

Automated door and API facilitate easy integration

Gator Pivot instrument

Real-time System Status

Clear LED indicators display running status

Gator Pivot instrument

Enchanced User Safety

Secondary power button enables secure operation

Gator Pivot instrument

Flexible Assay Configuration

Supporting 1 biosensor and 2 sample plates (96- or 384-well plates)

Gator Pivot instrument

Extended Application

Shaker temperature ranging from 15-40 C


Compare Gator Bio BLI Instruments

Gator Pro instrument
Gator Pro
Gator Pivot instrument
Gator Pivot

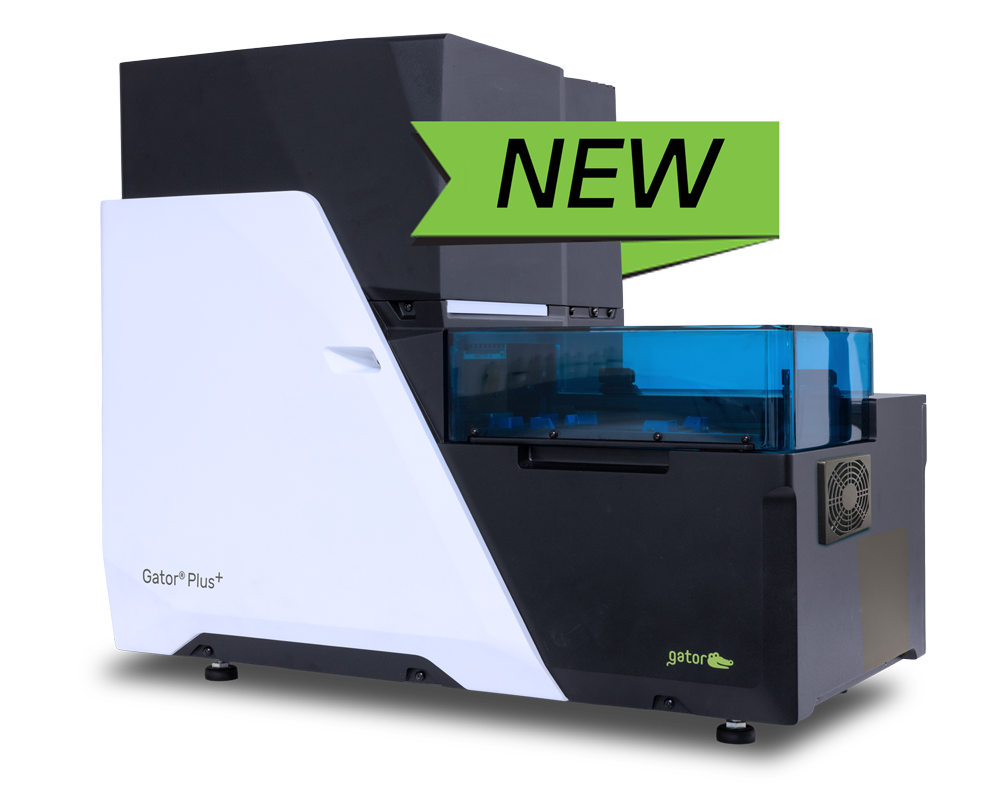

Gator Plus instrument
Gator Plus
Gator Prime instrument
Gator Prime
Gator Pilot instrument
Gator Pilot
Simultaneous reads
Up to 32
Up to 16
Up to 8
Up to 8
Up to 4
Max sample capacity
1152
816
1152
168
40
Plate capacity
3 x 96- or 384-well
2 x 96- or 384-well
96- or 384-well
96-well
96-well
Sample temperature control
Ambient + 4°C to 40°C
15°C to 40°C
Ambient + 4°C to 40°C
Ambient + 4°C to 40°C
Ambient + 4°C to 40°C
Automation ready
Yes
Yes
No
No
No
Min sample volume
40 uL
40 uL
40 uL
130 uL
130 uL
Smart monitoring
Yes
Yes
No
No
No
Self-cleaning
Yes
Yes
No
No
No
Dimensions (H x W x D) in cm
91 x 114 x 77
95 x 87 x 79
63 x 73 x 44
50 x 67 x 31
50 x 67 x 32
Weight
220 kg
130 kg
55 kg
35 kg
31 kg
High frequency parallel binding reactions
32
16
8
8
4
