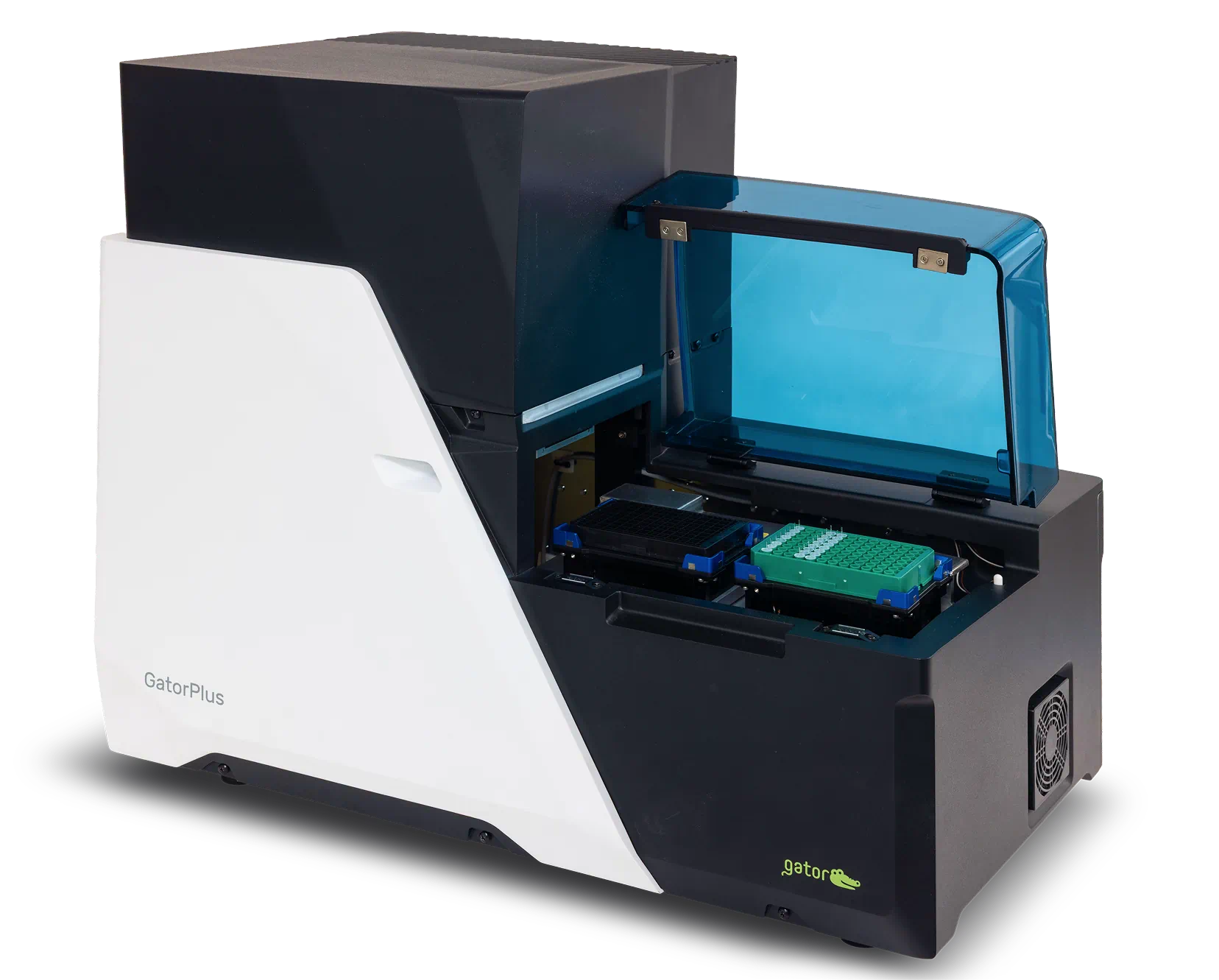

Gator Plus

Advanced BLI System

Key Specifications
  • 8High frequency parallel binding reactions
  • 456Samples quantitated per run
  • 16x16Epitope binning
Download brochure

Powerful BLI Performance, Simplified for Everyday Use.

Gator® Plus is an advanced, medium-throughput instrument for use in quantitation, kinetics, and epitope binning. With superior system stability, combined with greater flexibility in assay setup, Gator Plus allows you to expand the capabilities of BLI applications.

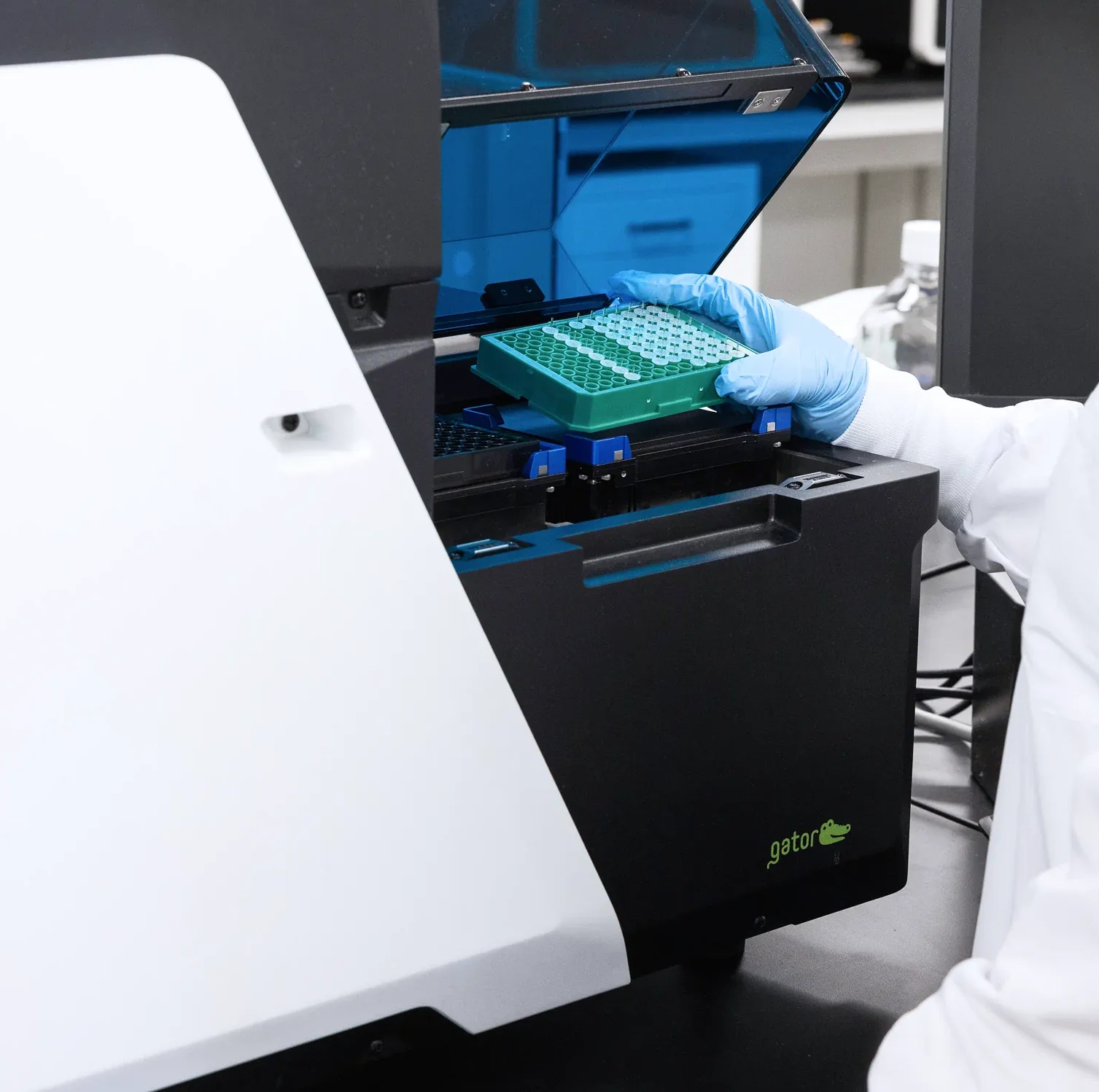

Flexible 8-Channel Format

Run up to 8 samples in parallel for efficient small-batch workflows, ideal for method development, antibody screening, or routine QC.

View applications

High Confidence for High-Affinity Targets

Achieve reliable detection of subtle binding events—thanks to the system’s stable baseline and trustworthy background performance, even with complex samples.

View applications

Gator Plus Features

Click on any information icon to view more

Graphic showing the Gator Pro instrument

High-resolution data

Dedicated spectrometer per channel, no data splitting across all reading modes

Lorem ipsum dolor

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer turpis justo, convallis eu suscipit dignissim, volutpat at enim. Sed vel feugiat ex, quis hendrerit lectus.

Download Spec Sheet
Graphic showing the Gator Pro instrument

High-resolution data

Dedicated spectrometer per channel, no data splitting across all reading modes

Graphic showing the Gator Pro instrument

Lorem ipsum dolor

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Integer turpis justo, convallis eu suscipit dignissim, volutpat at enim. Sed vel feugiat ex, quis hendrerit lectus.


Compare Gator Bio BLI Instruments

Gator Pro instrument
Gator Pro
Gator Pivot instrument
Gator Pivot
Gator Plus instrument
Gator Plus
Gator Prime instrument
Gator Prime
Gator Pilot instrument
Gator Pilot
Simultaneous reads
Up to 32
Up to 16
Up to 8
Up to 8
Up to 4
Max sample capacity
1152
816
1152
168
40
Plate capacity
3 x 96- or 384-well
2 x 96- or 384-well
96- or 384-well
96-well
96-well
Sample temperature control
Ambient + 4°C to 40°C
15°C to 40°C
Ambient + 4°C to 40°C
Ambient + 4°C to 40°C
Ambient + 4°C to 40°C
Automation ready
Yes
Yes
No
No
No
Min sample volume
40 uL
40 uL
40 uL
130 uL
130 uL
Smart monitoring
Yes
Yes
No
No
No
Self-cleaning
Yes
Yes
No
No
No
Dimensions (H x W x D) in cm
91 x 114 x 77
95 x 87 x 79
63 x 73 x 44
50 x 67 x 31
50 x 67 x 32
Weight
220 kg
130 kg
55 kg
35 kg
31 kg
High frequency parallel binding reactions
32
16
8
8
4
